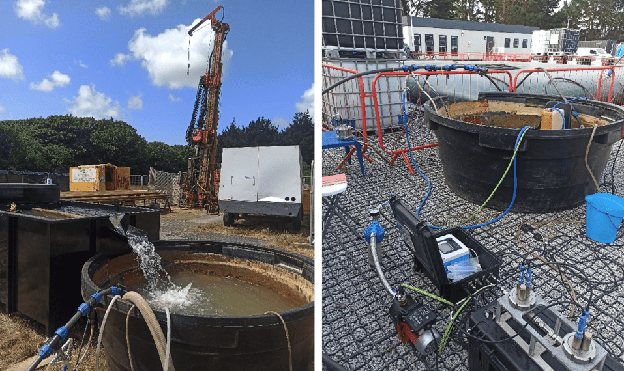

Impressions from the hydraulic testing and chemical monitoring at United Downs, June 2023. Left: Drilling rig at the borehole GWDD001 in the background and fluid produced by airlift testing in the foreground. Right: Chemical monitoring of produced fluid during tracer testing at GWDD002. In the foreground a flow-through cell measuring pH, temperature, redox potential, electric conductivity, and direct oxygen. Source: GFZ

The EU-funded CRM-geothermal project is pleased to announce the completion of fluid test work in Cornwall as part of its endeavour to develop a ground-breaking technology-solution combining the extraction of critical raw materials and energy from geothermal fluids.

Throughout June and July 2023, the CRM-geothermal project conducted a comprehensive series of investigations and borehole testing in Cornwall. These tests aimed to gather crucial data regarding the reservoir properties and characteristics of geothermal fluids deep underground. This data is of paramount importance for the potential future hosting of a demonstration extraction plant at United Downs, Cornwall. The pilot plant will serve as a testing ground for cutting-edge extraction technologies currently being developed by project partners.

Borehole testing took place at two previously drilled locations, situated near United Downs and the Cornish Lithium site on the United Downs Industrial Estate. The necessary drilling equipment arrived on 13 June, and the tests were successfully concluded on 7 July.

The scope of this extensive work included hydrogeological testing and geochemical sampling of the fluids. Hydrogeological testing involved the use of specialised tools to pump the boreholes and inject fluids, allowing the isolation of specific geological structures. Samples collected during these tests are currently undergoing analysis to determine their chemical composition and to characterise the fluids’ Critical Raw Materials (CRM) content. The primary objectives of the tests at United Downs are to re-characterise the geochemistry within the permeable structures, confirm the maximum flow rates of the boreholes given the current configuration, undertake cross-well monitoring during flow-rate tests, determine aquifer properties and permeable structure continuity, and characterise hydraulic conditions.

Two specific testing techniques were employed:

1. Airlift Testing: This method utilised pressurised air to bring the fluid to the surface. Simultaneous flow rate measurements provided essential data for estimating the maximum flow rates of the exploration borehole.
2. Tracer Testing: Tracer testing involved injecting an inert substance into the geological structure. This allowed for the determination of the capacities and recharge mechanisms of the geothermal reservoirs. The team conducted both push-pull tracer tests and cross-well tests. In the push-pull tracer test, the tracer was injected into one borehole and subsequently back-produced from the same borehole. In the cross-well test, injection occurred in one borehole, while production was performed at a second borehole. Results from tracer testing at United Downs indicated that the fractured reservoir is extremely permeable with high ground-water flow, such that injected water is quickly replaced by reservoir fluids.

The tests have been conducted by the British Geological Survey (BGS), Helmholtz Centre Potsdam (GFZ), and Cornish Lithium (CL), as well as drilling operator Priority Drilling Limited.

Mike Round, Head of Geothermal at Cornish Lithium, commented
“Working with our partners on the CRM-geothermal project has allowed Cornish Lithium to conduct further testwork on our geothermal reservoir. The project has focused on understanding how the geothermal brine moves around at depth, which is of critical importance to understand the most effective and sustainable means of extraction.”

The insights gained from this successful fluid test work will play a pivotal role in advancing the development of sustainable geothermal energy solutions. Furthermore, it will significantly contribute to the future utilisation of geothermal resources in tandem with the extraction of raw materials crucial for the ongoing global energy transition.
